TM&W-W3001 Digital Temperature Microcomputer Thermostat 12V/24V/110V-220V with Probe Heat Cool Temp Thermostat Control Switch

TM&W-W3001 Digital Temperature Microcomputer Thermostat 12V/24V/110V-220V with Probe Heat Cool Temp Thermostat Control Switch

TM&W-W3001 Digital Temperature Microcomputer Thermostat 12V/24V/110V-220V with Probe Heat Cool Temp Thermostat Control Switch
Price: ₹2,000.00 - ₹375.00
(as of Apr 24, 2025 08:50:07 UTC – Details)


Measuring range: -50 ° C ~ 110 ° C 2. Control range: -50 ° C ~ 110 ° C 3. Measuring accuracy: plus or minus 0.2 ° C Control precision: plus or minus 0.1 ° C 5. Measuring input: NTC10K L = 1 m waterproof probe 6. Power: 1500 W. 7. Input voltage: 220 V. Current: Max 10A 9. Size: 60 * 45 * 30mm How to use: 1. Press the up button to show the starting temperature Long press UP button the temperature display Flashing, press the UP or Down button Set the start temperature value 2. Press the Down button to show the Stop temperature Long press button the temperature display Flashing, press the UP or Down button Set the stop temperature value
How to set 1. Press up button show the starting temperature. 2. Long press UP button the temperature display Flashing , Press the UP or Down button. 3. Set the start temperature value. 4. Press Down button show the Stop temperature. 5. Long press Down button the temperature display Flashing , press the UP or Down. 6. Button Set the stop temperature value

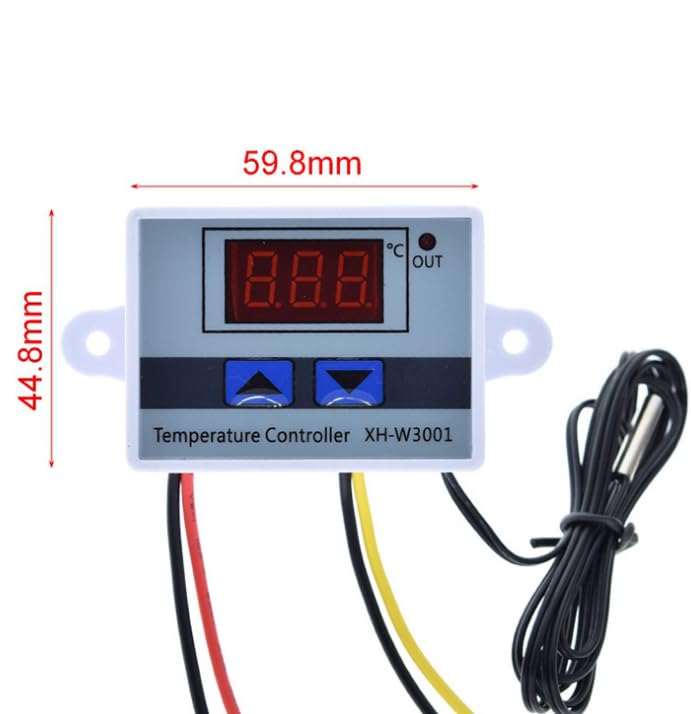

0.1 ° C Accuracy ±1° C (-50 ° C ~ 70 ° C) Power supply 110-220VAC 50/60Hz, 12VDC , 24VDC Output Relay Two Relay Cool 10A/220VAC; Heat 10A/220VAC NTC sensor 1m Size 60*45*31mm
