Product Description

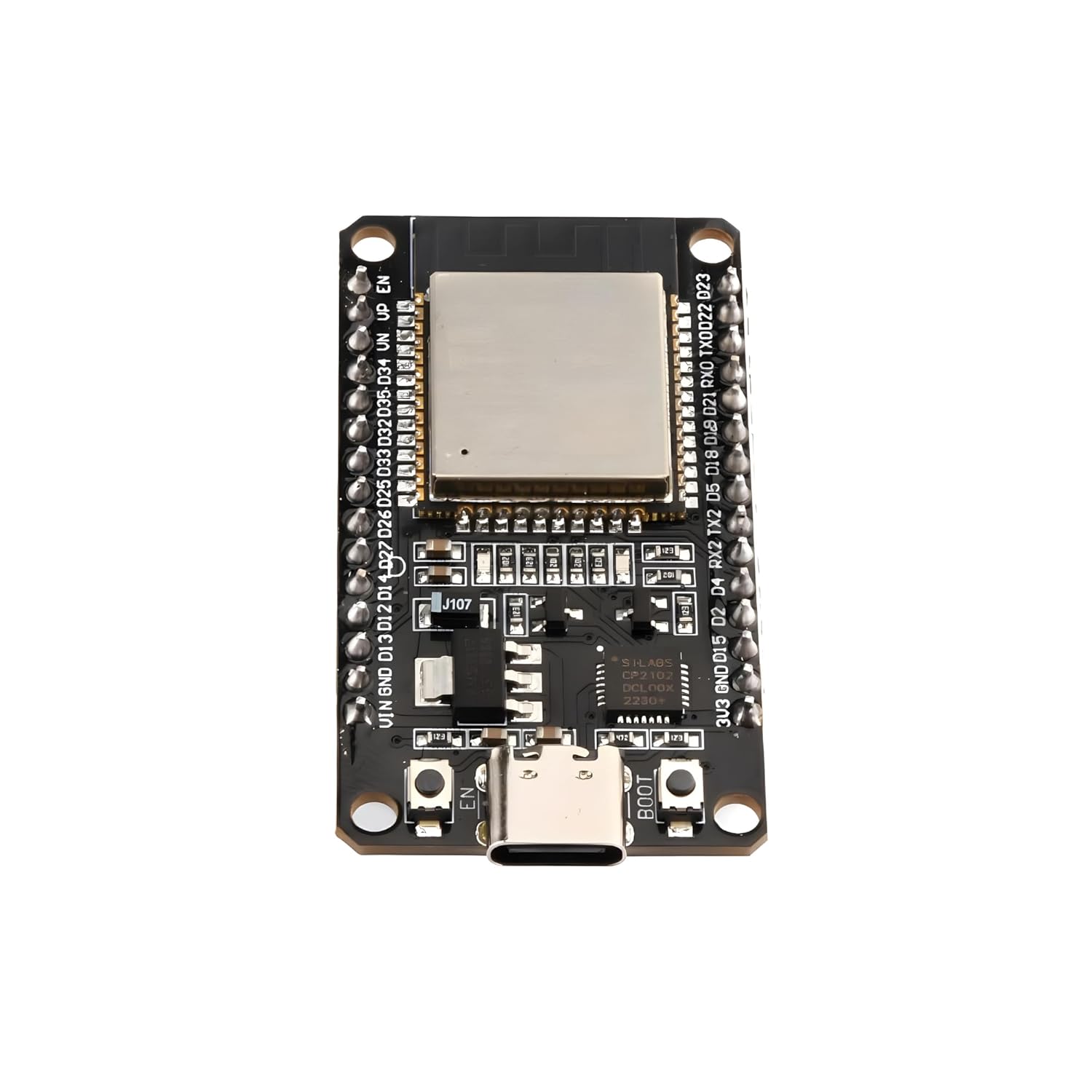

ESP32 C-TYPE CP2102 30 PIN
The ESP32 WROOM-32 C Type module is a powerful and versatile microcontroller featuring dual-core processing capabilities, integrated WiFi, and Bluetooth connectivity. It includes the CP2102 USB-to-UART bridge for easy connection to your computer for programming and debugging. This module is ideal for a wide range of applications, from IoT devices and smart home automation to robotics and wearable electronics. Its dual-core processor and wireless connectivity make it a robust choice for developing complex and connected projects.
PINOUT
ESP32 WROOM-32 C Type CP2102 USB Dual Core WiFi + Bluetooth Module Pinout:
3V3: 3.3V power supplyGND: GroundEN: Enable/Reset pinIO0 – IO19: General-purpose I/O pins, used for various functions (e.g., UART, SPI, I2C)IO34 – IO39: Input-only pins for sensing applications
Specifications
Processor Dual-core Xtensa 32-bit LX6 WiFi 802.11 b/g/n Bluetooth Bluetooth v4.2 BR/EDR and BLE USB-to-UART Bridge CP2102 Flash Memory Typically 4MB (varies by module) RAM 520KB SRAM Operating Voltage 3.3V DC Current Consumption Active: Up to 160mA (depends on use) & Deep Sleep: < 10µA GPIO Pins Multiple, with various functionalities PWM Yes, for precise control ADC 12-bit ADC with multiple channels DAC 8-bit DAC with two channels Communication Interfaces UART, SPI, I2C, I2S Temperature Range -40°C to 85°C
Troubleshooting & Overheating Issues
Check Power Supply: Use a stable 5V, 2A power source.Use a Heatsink: Attach a heatsink to reduce heat.Ventilation: Ensure good airflow around the ESP32 module.USB Cable Quality: Use a high-quality, short USB cable to prevent power drops and communication errors.External Hardware : To prevent issues like overheating or damaging your ESP32, ensure you know the correct pin mappings before connecting external hardware. Misconnecting components can lead to short circuits, excessive current draw, or even permanent damage to the microcontroller. Always reference the ESP32 pinout diagram for accurate pin assignments when interfacing with peripherals.
Trusted & Tested Product
This Product Has Passed Through The Below Testing Stages
Visual InspectionPower On TestConnectivity TestFunctonal TestingPerformance Testing
Supported interfaces: UART, SPI, SDIO, 12C, PWM, 12S, IR, ADC, DAC
On chip sensors: hall sensors, temperature sensors, capacitive touch sensors
Serial port speed: default 115200bps
Spectrum range: 2412 ~ 2484MHz
