Price: ₹9,160 - ₹8,325.00
(as of May 07, 2025 07:10:38 UTC – Details)
Feture

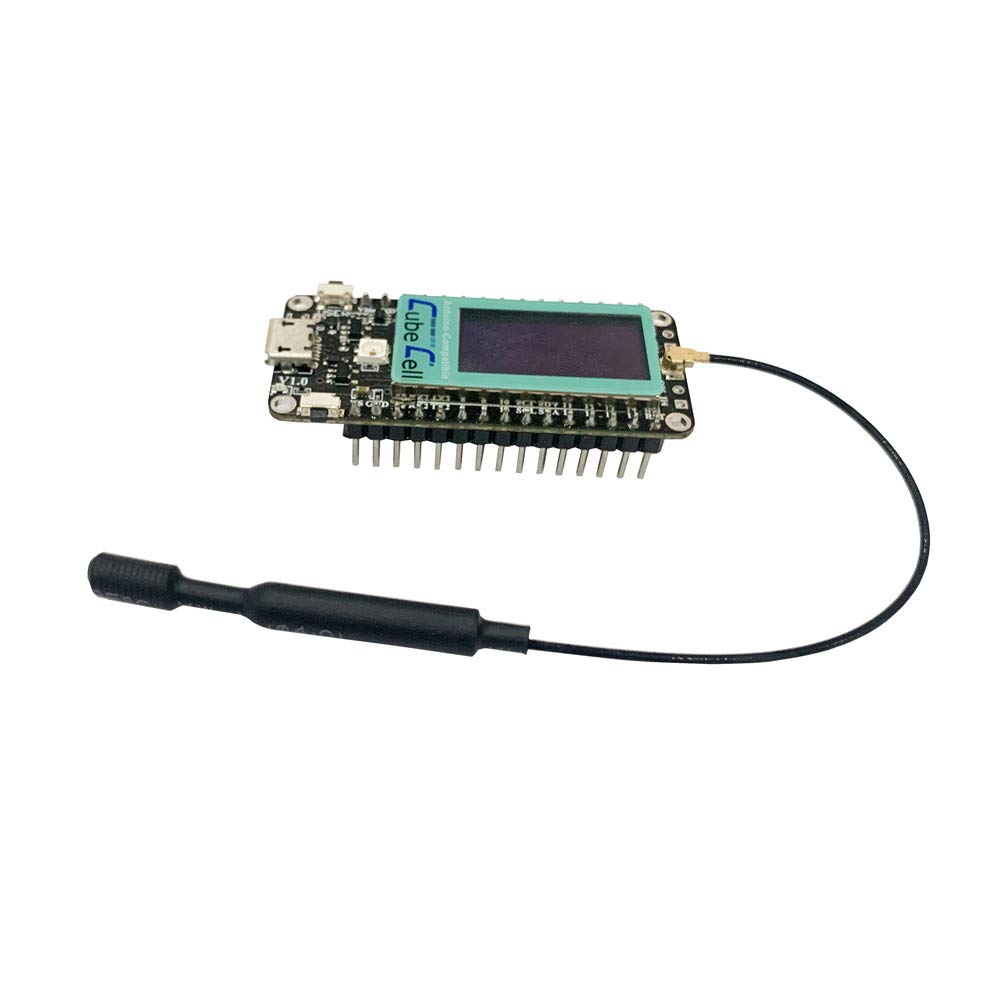

MCU:ASR6502 (48 MHz ARM Cortex M0+ MCU, 128KB FLASH, 16KB SRAM )
LoRa Chip:ASR6502 (Internal assembled Semtech LoRa Transceiver SX1262)
LoRa working band:EU_433, CN_470_510, EU_863_870, US_902_928
LoRa maximum output power:22 ± 1dB
Hardware resources:UART x 2; SPI x 2; I2C x 2; SWD x 1; ADCx 312 – bits ADC; 8 – channel DMA engine14 x GPIOFLASH:128KB
internal FLASHInterface:Micro USB x 1; LoRa (IPEX) x 1
Size :50.9 x 22.9 x 8 mm
USB-UART bridge :CP2102
Battery Type :3.7V Lithium (SH1.25 x 2 socket)
Battery detection circuit:√
External device power control（Vext）:√
Low power design:Deep Sleep 3.5uA
Perfect Compatible ! CE and FCC certification;
Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262;
LoRaWAN 1.0.2 support;
Ultra low power design, 3.5uA in deep sleep;
Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
